The digital processor for experimental image data: Analyzer

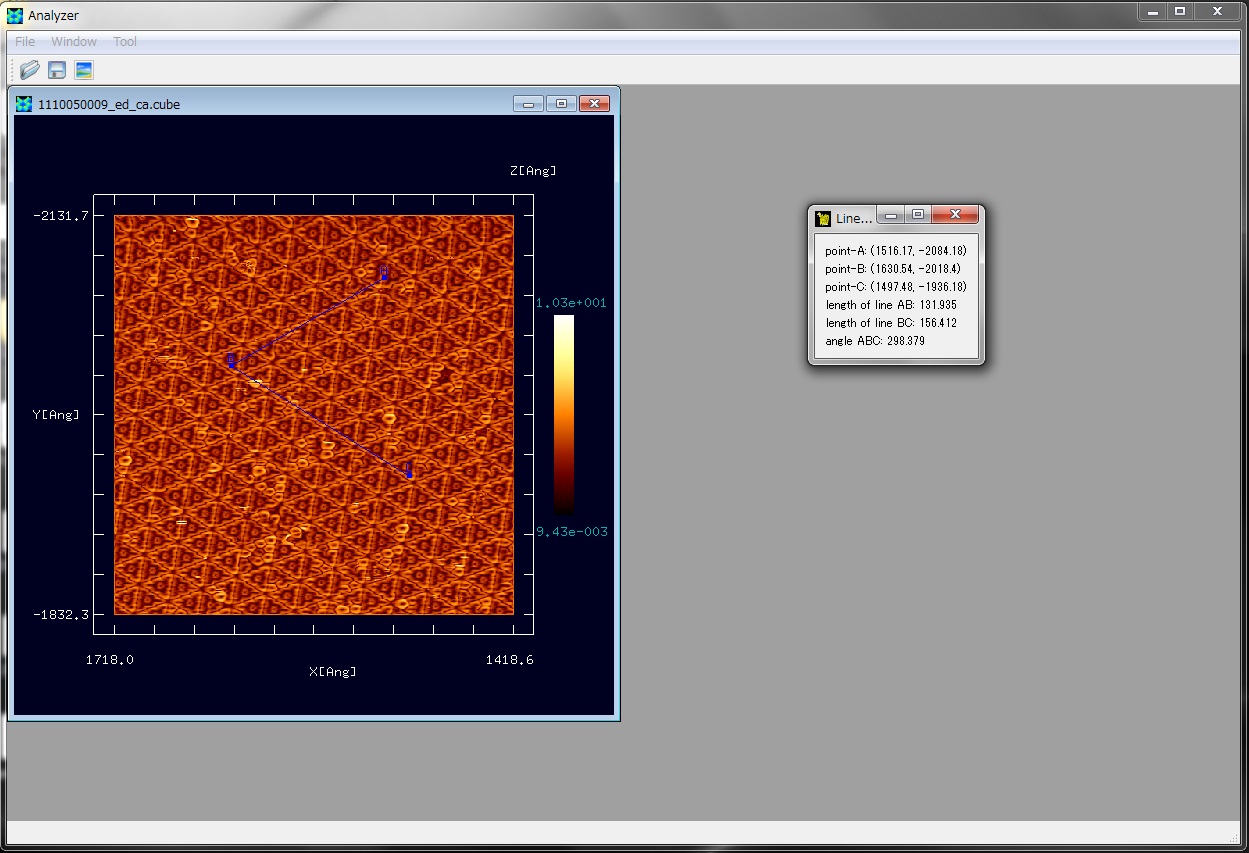

On an image obtained by the SPM experiment for the surface of Si(111)-(7×7)DAS, indicating three points, A, B, and C, and obtaining lengths of lines, AB and BC, and an angle between the two lines

A movie file that explains how to use the Analyzer

A document that explains how to use the Analyzer (an Excel file)

Original experimental data of the SPM image in the cube format, which is a special format for the SPM simulator [This experimental data is offered by Professor Hiroyuki Hirayama, Nano-Quantum Physics at Surfaces and Interfaces, Department of Materials and Engineering, Tokyo Institute of Technology.]

If you have any questions about how to use the Analyzer, please contact us by e-mail.
When you send an e-mail to us, a string of characters is put into a subject of the e-mail automatically.
This string tells us at which stage of the simulation you have a trouble.

Instead of sending the e-mail to us, you can give us any questions using the following form.

Subject:

Name:

E-mail address:


What kind of trouble do you have?





Please tell us your trouble precisely.


If you want to consult with us about digital processing of experimental data of the SPM image, our engineer can help you with consulting fee.
Would you like to request technical consultation from us with consulting fee?



If you want to let us process digital images of the SPM experiments for you, our engineer can help you with charging a rate.
Would you like to request digital processing of the image data from us with charging a rate?
